This is so not boat related...

I need 2 of these made...

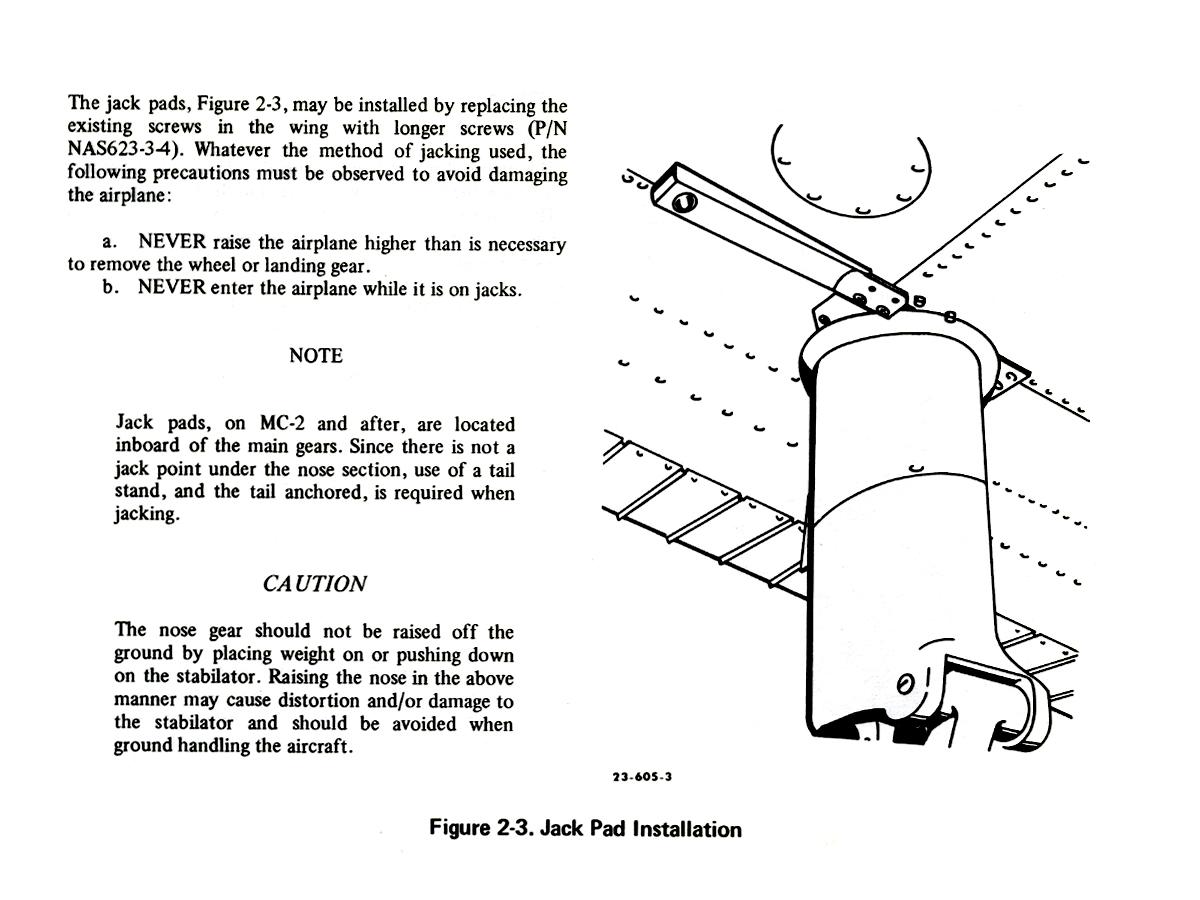

They are jack pads for the airplane.  The originals were cast aluminum, but you can't find them anymore.  So my guess is I'd need a machinist to make some out of bar stock.

Is that possible....


... and how much??? :D

Attached Image
Attached Image

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
Carrera EliteMale Offline
Libra
 HDF Supporter

10,000 post flame10,000 post flame10,000 post flame10,000 post flame1,000 post flame1,000 post flame1,000 post flame1,000 post flame100 post flame
Glendale,AZ
Posts: 44,127
APPD 5.64
Post Rank: 2
1990 Carrera 23.5 Classic
Post Icon Posted: July 30 2007,5:39 pm Post # 2 see this member send this member a private message  quote this post in reply
The only measurements that I see missing, Is from the front edge to the center of the first holes.... andthe Diam. of the bump...

Edited by Carrera Elite on July 30 2007,5:41 pm

Sarcasim, Just one more thing that I offer for free!!
I've Reached The Age Where Happy Hour Is A Nap!!

WWW.StormPokerRuns.Com
Back to top
| Member # 8 | Joined: 12-04-2002 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: July 30 2007,5:42 pm Post # 3 see this member send this member a private message  quote this post in reply

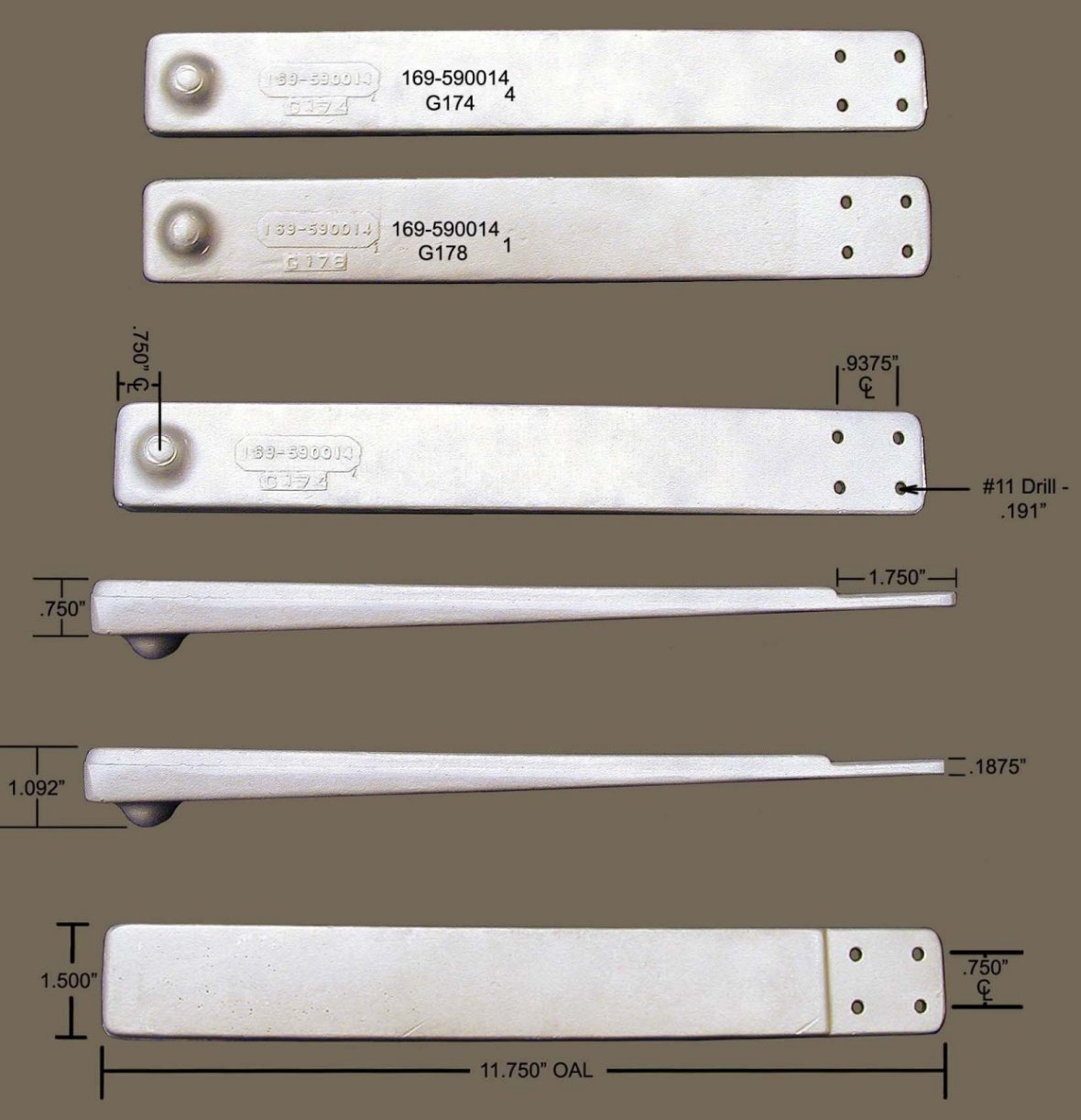

I'm looking for a dimensional drawing... I've seen one on the web, just can't remember where...

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
Carrera EliteMale Offline
Libra
 HDF Supporter

10,000 post flame10,000 post flame10,000 post flame10,000 post flame1,000 post flame1,000 post flame1,000 post flame1,000 post flame100 post flame
Glendale,AZ
Posts: 44,127
APPD 5.64
Post Rank: 2
1990 Carrera 23.5 Classic
Post Icon Posted: July 30 2007,6:19 pm Post # 4 see this member send this member a private message  quote this post in reply
What is the part for??  Do you pic. of it installed?

Sarcasim, Just one more thing that I offer for free!!
I've Reached The Age Where Happy Hour Is A Nap!!

WWW.StormPokerRuns.Com
Back to top
| Member # 8 | Joined: 12-04-2002 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,417
APPD 8.06
Post Rank: 1
Spectra20
Post Icon Posted: July 30 2007,9:06 pm Post # 5 see this member send this member a private message  quote this post in reply
Aaron, I could make that except for one thing, I have no way of putting that hump on there??, what does that part do?, does it have to be a ball like shape???.. :stupid
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GlassManMale Offline
Pisces
 HDF Silver Supporter
Redondo Crew
5,000 post flame500 post flame100 post flame100 post flame
Redondo Beach, California, USA
Posts: 5,761
APPD 0.79
Post Rank: 13
Post Icon Posted: July 31 2007,8:50 am Post # 6 see this member send this member a private message  quote this post in reply
Quote (Carrera Elite @ July 30 2007,5:39 pm)
The only measurements that I see missing, Is from the front edge to the center of the first holes.... andthe Diam. of the bump...

My guesstimate would be around .4062.
I got a guy who used to work in my shop who is now out in Marina del Rey who could whip these up for you.

Want I should send it his way for a quote?  ;)

It's a fact of Life:

After Monday and Tuesday, even the Calendar says : WTF .......
Back to top
| Member # 617 | Joined: 4-29-2004 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: July 31 2007,12:54 pm Post # 7 see this member send this member a private message  quote this post in reply
Quote (Carrera Elite @ July 30 2007,6:19 pm)
What is the part for??  Do you pic. of it installed?

They are jack pads for the airplane, so I can jack the gear leg completely off the ground.  I'll see if I can find a pic of one of them in action.

Quote
Aaron, I could make that except for one thing, I have no way of putting that hump on there??, what does that part do?, does it have to be a ball like shape???..


Yeah, the bump fits down inside a dimple on the hydraulic jack, keeps it from falling off the jack while you are raising or lowering the airplane.

Edited by Sleek-Jet on July 31 2007,12:55 pm

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: July 31 2007,1:35 pm Post # 8 see this member send this member a private message  quote this post in reply
Let's see if I can attatch a PDF here...

Attached Image
Attached Image

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
WATERDOGMale Offline
Gemini
 HDF Silver Supporter
Don't Bother Me, I'm in Havi
10,000 post flame100 post flame100 post flame
MENIFEE, CA
Posts: 10,292
APPD 1.65
Post Rank: 8
ELIMINATOR EAGLE
Post Icon Posted: July 31 2007,1:53 pm Post # 9 see this member send this member a private message  quote this post in reply
So this piece keeps a jack, (not part of plane), from slipping off wing root?

"Damn you sure know how to fock things up."-GFR
Back to top
| Member # 2868 | Joined: 4-23-2007 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: July 31 2007,2:03 pm Post # 10 see this member send this member a private message  quote this post in reply
Quote (WATERDOG @ July 31 2007,1:53 pm)
So this piece keeps a jack, (not part of plane), from slipping off wing root?

In a way yes...

The airplane doesn't have any hard points (renforced areas)on the wing for jacking it off the ground.  The jack pad not only gives you a point to install the jack, but spreads the load across the spar and keep the wing from being damaged.

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
WATERDOGMale Offline
Gemini
 HDF Silver Supporter
Don't Bother Me, I'm in Havi
10,000 post flame100 post flame100 post flame
MENIFEE, CA
Posts: 10,292
APPD 1.65
Post Rank: 8
ELIMINATOR EAGLE
Post Icon Posted: July 31 2007,2:08 pm Post # 11 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ July 31 2007,2:03 pm)
Quote (WATERDOG @ July 31 2007,1:53 pm)
So this piece keeps a jack, (not part of plane), from slipping off wing root?

In a way yes...

The airplane doesn't have any hard points (renforced areas)on the wing for jacking it off the ground.  The jack pad not only gives you a point to install the jack, but spreads the load across the spar and keep the wing from being damaged.

That's exactly what it looked like.

"Damn you sure know how to fock things up."-GFR
Back to top
| Member # 2868 | Joined: 4-23-2007 |
Carrera EliteMale Offline
Libra
 HDF Supporter

10,000 post flame10,000 post flame10,000 post flame10,000 post flame1,000 post flame1,000 post flame1,000 post flame1,000 post flame100 post flame
Glendale,AZ
Posts: 44,127
APPD 5.64
Post Rank: 2
1990 Carrera 23.5 Classic
Post Icon Posted: July 31 2007,3:35 pm Post # 12 see this member send this member a private message  quote this post in reply
Looking at this, I guess that the size of the "dimple" isn't that critical?? :stupid

Sarcasim, Just one more thing that I offer for free!!
I've Reached The Age Where Happy Hour Is A Nap!!

WWW.StormPokerRuns.Com
Back to top
| Member # 8 | Joined: 12-04-2002 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: July 31 2007,4:15 pm Post # 13 see this member send this member a private message  quote this post in reply
Quote (Carrera Elite @ July 31 2007,3:35 pm)
Looking at this, I guess that the size of the "dimple" isn't that critical?? :stupid

No... shape really isn't that important either... as long as it allows the face of the jack to contact the pad...

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.10
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: July 31 2007,5:42 pm Post # 14 see this member send this member a private message  quote this post in reply
Maybe you could thread the back side of it and bolt it on to the plate. Do they make round aluminum stuff you could cut in half :stupid

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.10
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: July 31 2007,5:49 pm Post # 15 see this member send this member a private message  quote this post in reply
Hell make a mold and start making them if nobody else does.

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
Carrera EliteMale Offline
Libra
 HDF Supporter

10,000 post flame10,000 post flame10,000 post flame10,000 post flame1,000 post flame1,000 post flame1,000 post flame1,000 post flame100 post flame
Glendale,AZ
Posts: 44,127
APPD 5.64
Post Rank: 2
1990 Carrera 23.5 Classic
Post Icon Posted: July 31 2007,6:01 pm Post # 16 see this member send this member a private message  quote this post in reply
Quote (AZKC @ July 31 2007,5:42 pm)
Maybe you could thread the back side of it and bolt it on to the plate. Do they make round aluminum stuff you could cut in half :stupid

That's what I was wondering as well. A friend of mine is a machinist. He said makeing those  would be "A Piece Of Cake".....

Sarcasim, Just one more thing that I offer for free!!
I've Reached The Age Where Happy Hour Is A Nap!!

WWW.StormPokerRuns.Com
Back to top
| Member # 8 | Joined: 12-04-2002 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,417
APPD 8.06
Post Rank: 1
Spectra20
Post Icon Posted: Aug. 01 2007,6:14 am Post # 17 see this member send this member a private message  quote this post in reply
Well, if it don't have to be exactly the way it is, you can use round stock and split it then bolt it to the part!.. :stupid
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Aug. 01 2007,4:44 pm Post # 18 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Aug. 01 2007,6:14 am)
Well, if it don't have to be exactly the way it is, you can use round stock and split it then bolt it to the part!.. :stupid

Sounds like that would work to me...  :good

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,417
APPD 8.06
Post Rank: 1
Spectra20
Post Icon Posted: Aug. 02 2007,7:52 pm Post # 19 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ Aug. 01 2007,4:44 pm)
Quote (GoFastRacer @ Aug. 01 2007,6:14 am)
Well, if it don't have to be exactly the way it is, you can use round stock and split it then bolt it to the part!.. :stupid

Sounds like that would work to me...  :good

Well if that would work I could make them, but the question is, are you in a hurry for them????..  :stupid
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.82
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Aug. 03 2007,5:28 pm Post # 20 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Aug. 02 2007,7:52 pm)
Quote (Sleek-Jet @ Aug. 01 2007,4:44 pm)
Quote (GoFastRacer @ Aug. 01 2007,6:14 am)
Well, if it don't have to be exactly the way it is, you can use round stock and split it then bolt it to the part!.. :stupid

Sounds like that would work to me...  :good

Well if that would work I could make them, but the question is, are you in a hurry for them????..  :stupid

No... I'd like to have them by the time I do the annual inspection, but that is still several months down the road... October probably.

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,417
APPD 8.06
Post Rank: 1
Spectra20
Post Icon Posted: Aug. 03 2007,9:36 pm Post # 21 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ Aug. 03 2007,5:28 pm)
Quote (GoFastRacer @ Aug. 02 2007,7:52 pm)
Quote (Sleek-Jet @ Aug. 01 2007,4:44 pm)
Quote (GoFastRacer @ Aug. 01 2007,6:14 am)
Well, if it don't have to be exactly the way it is, you can use round stock and split it then bolt it to the part!.. :stupid

Sounds like that would work to me...  :good

Well if that would work I could make them, but the question is, are you in a hurry for them????..  :stupid

No... I'd like to have them by the time I do the annual inspection, but that is still several months down the road... October probably.

Well that shouldn't be a problem, but I'll know for sure next week if we survive the Beach or not, I'll let you know!..
